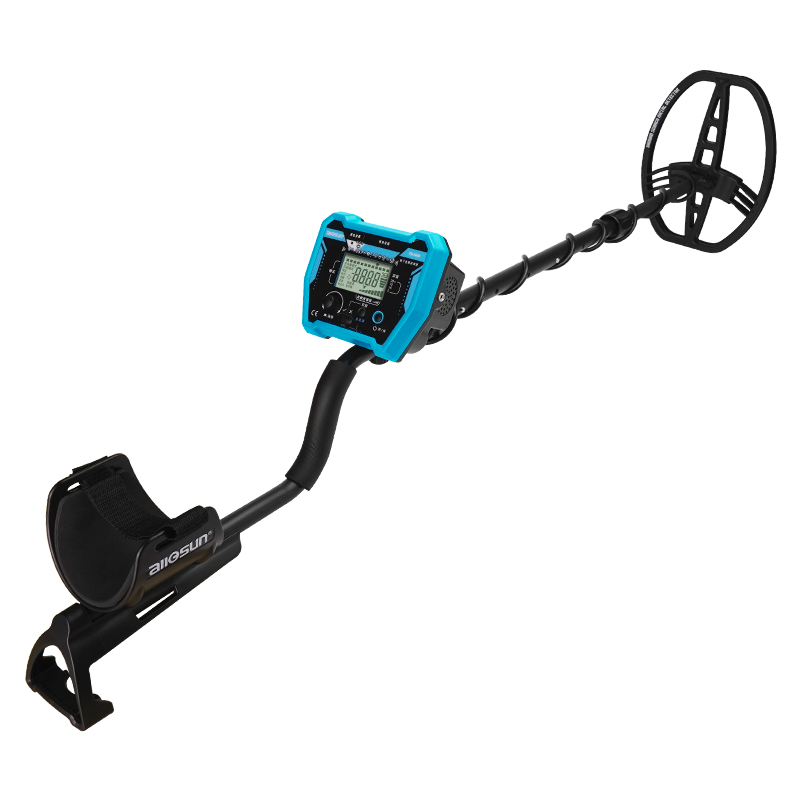

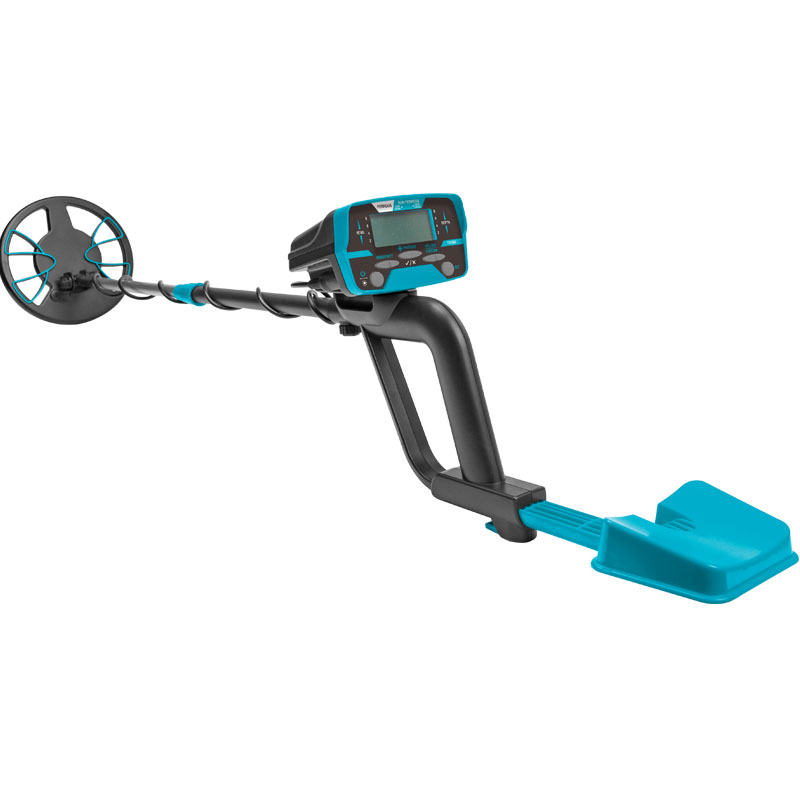

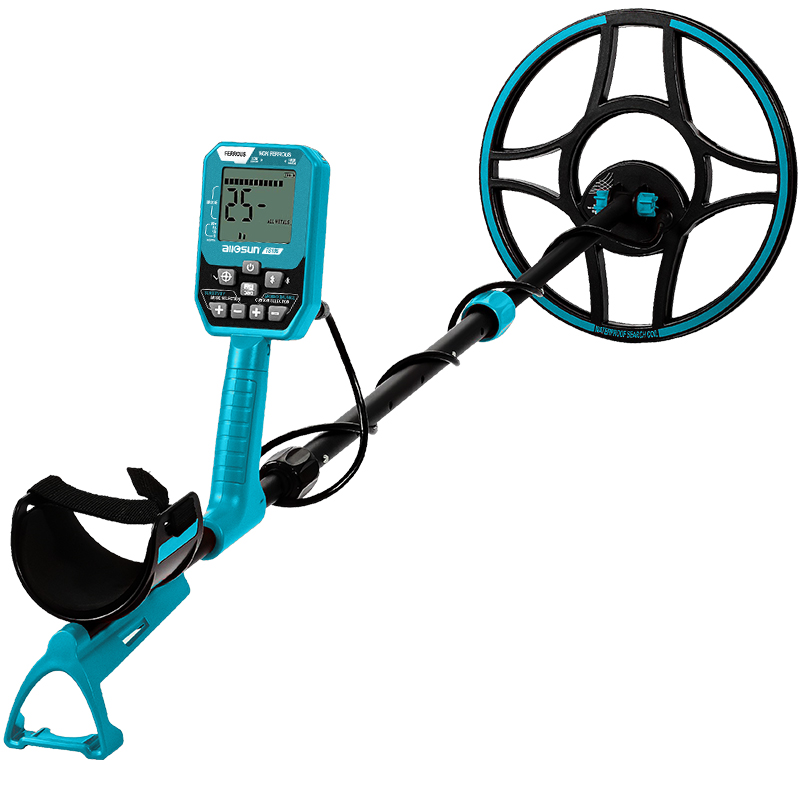

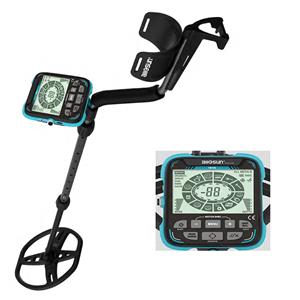

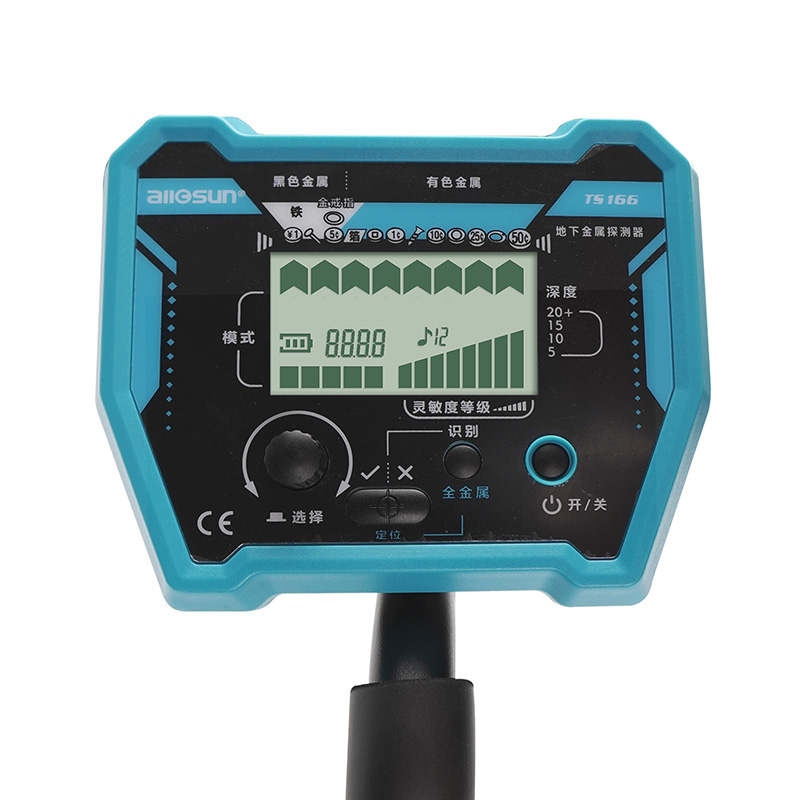

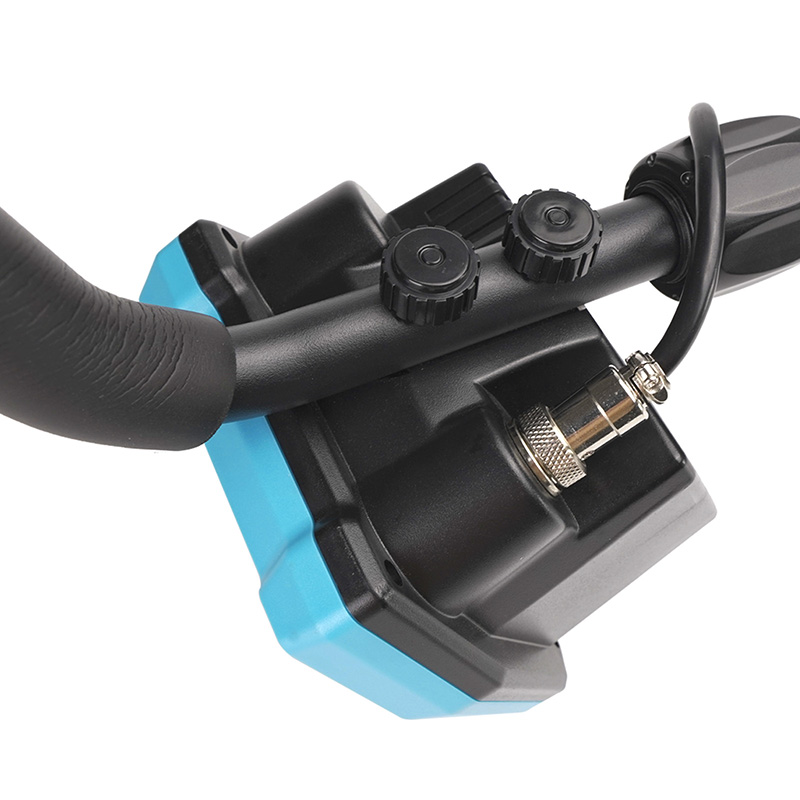

Professional waterproof gold scanner metal detector
- all-sun
- china
- 60 days
- 10k units per month
- TS166
This metal detector's detection sensitivity can be adjusted, operator can select a desired sensitivity according the actual situation. Under common situation such as indoors or in the place of complex soil constitution, you should select low sensitivity. Operating with low sensitivity, the detector operates stably and has powerful anti-interference capability. If you want to detect outdoors in the area of homogeneous soil and the target is buried deeply, you can select high sensitivity. Selecting high sensitivity increases the detection depth, but the detection is liable to be disturbed by the stray wave in environment and the metallic scraps in soil.
Product Introduction
This metal detector can be used to detect metallic objects buried underground. It uses the latest technology and its sensitivity can be adjusted. It is very easy to operate and its weight is very light.
There are various kinds of mineral in the soil, and they can interfere with the detection of the target metal object, especially in the area where soil constitution is complex. The soil signal interference is called the effect of mineralization. The detector is equipped with advanced ground balance system which is very effective in decreasing the soil signal interference. Therefore, detection depth and detection accuracy are increased greatly.
TECHNICAL SPECIFICATION
| Parameter | Specification |
|---|---|
| Main Function | Detects metal objects in construction sites, yards, lawns, parks, beaches and other scenes through the principle of electromagnetic induction. |
| Power Supply Voltage | 6.8–9.6V (battery powered) |
| Rated Current | ≤180mA (when speaker ringing) Static current ≤70mA |
| Signal Frequency | 7.2 KHz |
| Product Type | Liquid Crystal Type |
| Handle Length | 27–38 inches |
| Probe Shape | Round |
| Probe Size | 12 inches |
| Depth of Detection | Maximum detection depth: up to 1.5 m for large metal objects (Steel plate 60×60×2 cm test condition) |
| Detection Mode | All-metal mode, Recognition mode [Memory mode (Jewelry mode, Coin mode, Wreckage mode, Jewelry mode), Custom mode] |
| IP Rating | Waterproof depth: up to 3 meters IP Rating: IP68 |
| Volume Level | ≥75 dB (10 cm distance) |
| Audio Frequency | 400 ~ 1200 Hz |
| Sensitivity | ≤1.5 m (Test steel plate: 60 × 60 × 2 cm) |
| Anti-Mutual Interference | Distance between use ≥ 1 m |
| Indication Tone | Speaker, earphone tone |
| Working Hours | 8 hours |
| Power Alert | 4 cells of power display |
| Working Environment | -10℃ ~ 50℃ |
| Material | ABS |
| Display | LCD backlit large screen |
| Processing Chip | Embedded microcontroller |
| Probe Rod | Nylon + Fiber |
| Probe Plate | ABS |
| Battery | AA Normal Alkaline Battery 1.5V × 6 |
Product Features
Waterproof Design: Enables seamless treasure hunting in wet conditions, including beaches, rivers, and shallow waters, for limitless exploration.
High Sensitivity: Detects even the smallest gold particles, ensuring no treasure goes unnoticed during your search.
Ergonomic Handle: Designed for comfort and ease of use, reducing fatigue during extended treasure-hunting sessions.
Adjustable Shaft: Accommodates users of different heights, making it accessible for everyone, from beginners to professionals.
LCD Display: Provides clear, real-time information about detected materials and their depth for precise treasure location.
Discrimination Mode: Filters out unwanted metals, ensuring you focus only on valuable finds like gold, silver, and relics.
Pinpoint Function: Locates exact positions of buried objects, reducing digging time and increasing efficiency during searches.
Durable Construction: Built to withstand rugged terrains and harsh environments, ensuring long-term reliability and performance.
About Us

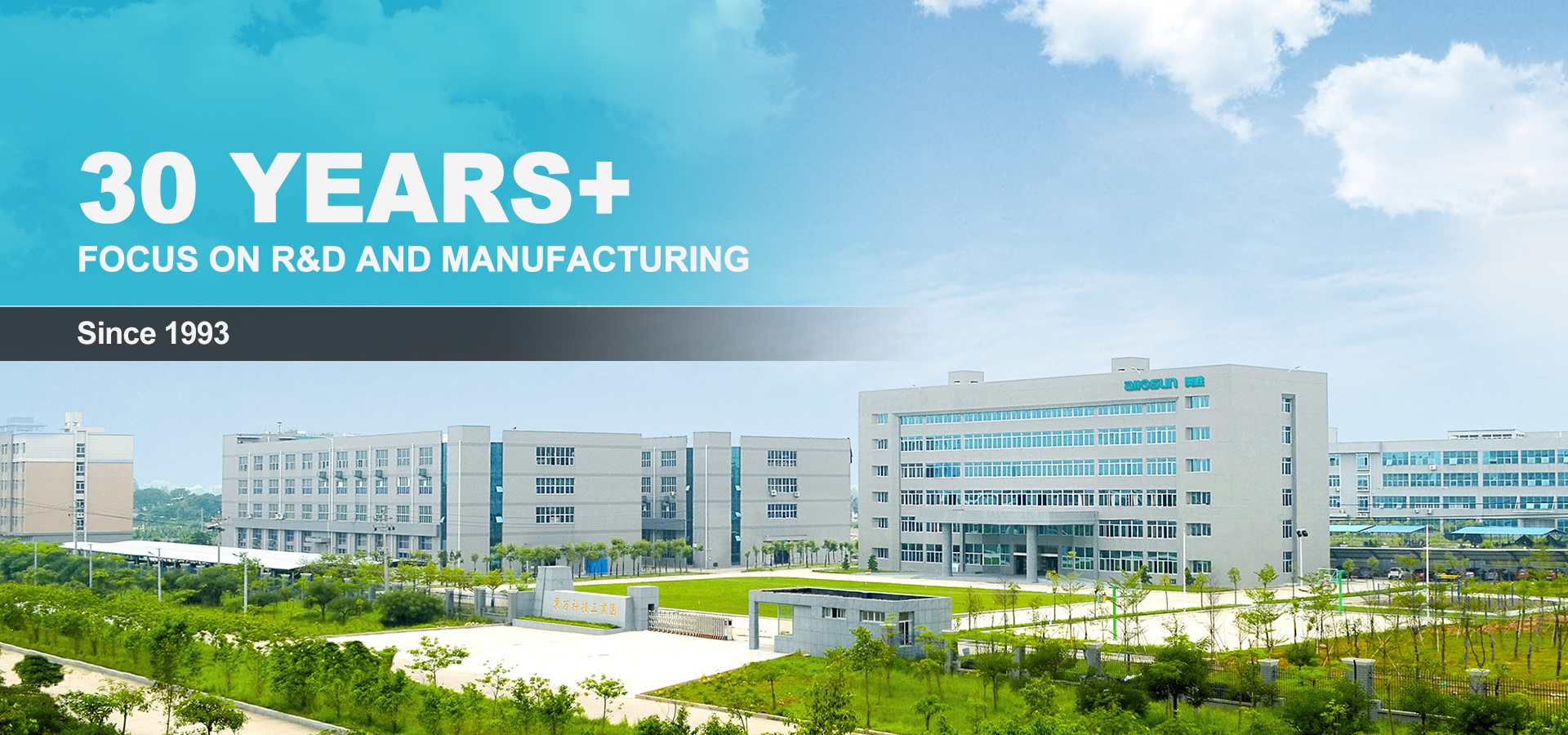

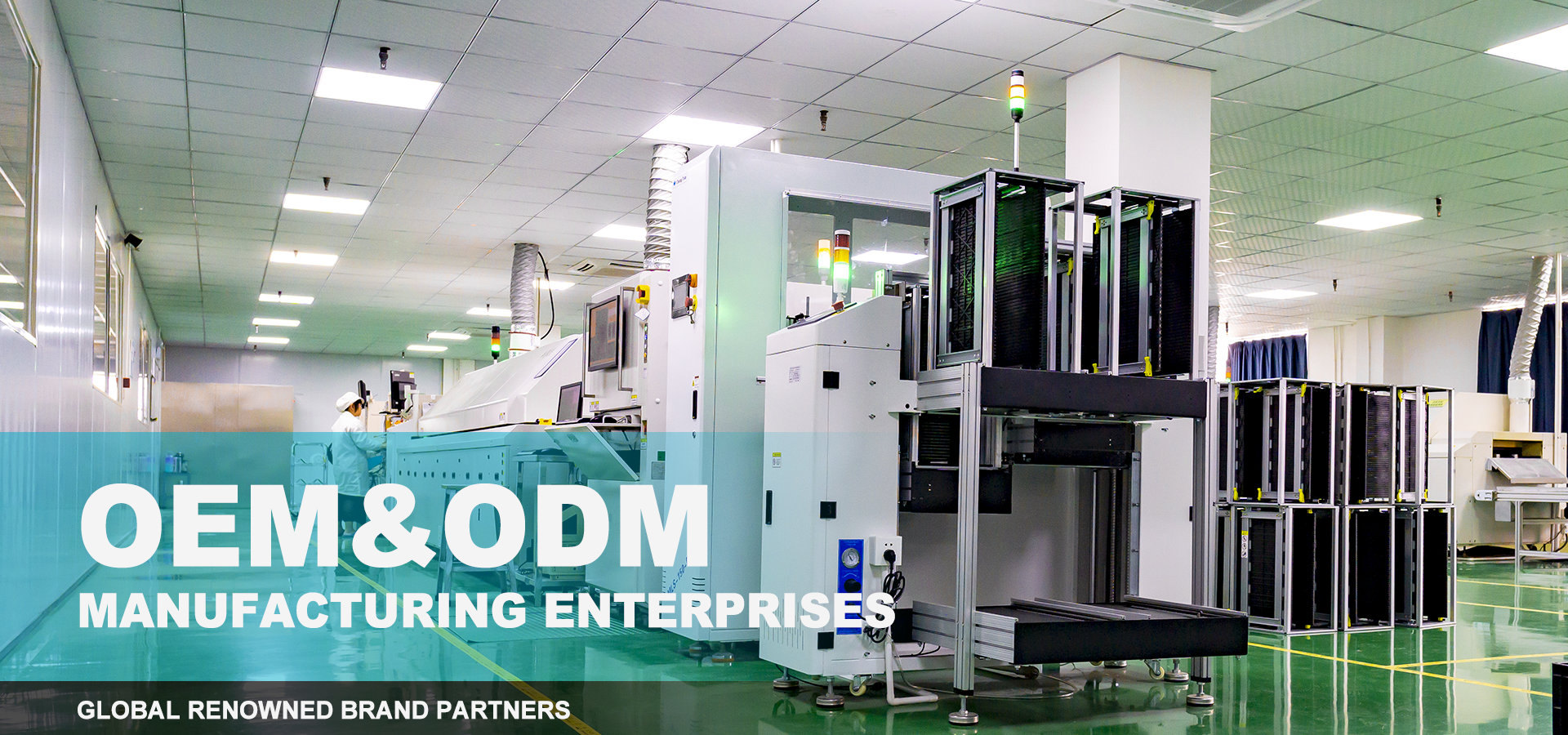

Our company started its operation in 1993 and since then 30 years of experience in OEM and ODM manufacturing have been handed down. We are reliable custom solution providers for global brands and distributors. Our 67,000㎡ automated production facility is fully equipped with advanced machinery raising a monthly output of 10,000 units to assure steady supply and high-quality production.
Driven by a strong R&D department consisting of more than 50 engineers and over 200 patents, we keep innovating to offer customized solutions.
We have obtained many internationally recognized certificates such as CE, UL, ETL, RoHS, and FCC. Additionally, our products have been tested and verified by accredited third-party labs like SGS, TÜV, and Intertek. These make sure that our products conform to the highest levels of safety, quality, and regulatory standards in various markets.
Our products are spread in over 70 countries worldwide. They are widely applied to the electronics, telecom, automobile, and environmental monitoring sectors. Throughout the years, we have built up a good relationship with major international brands and have been recognized as a reliable and trustworthy OEM/ODM partner.
Full after-sales services such as technical consultation, installation assistance, and training program are tensions of our product range helping our partners to achieve the best performance and get the most out of product investment.

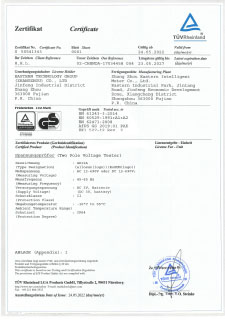

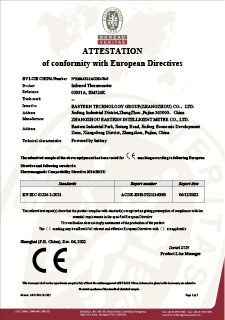

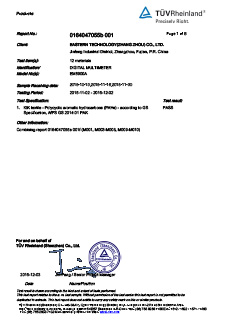

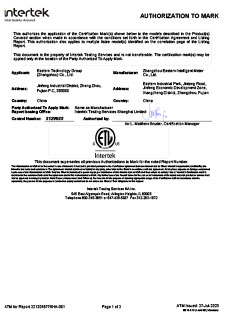

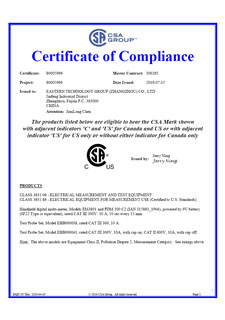

Our Certifications

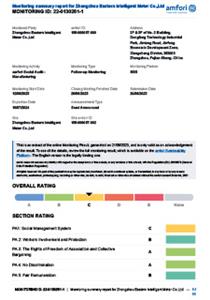

BSCI

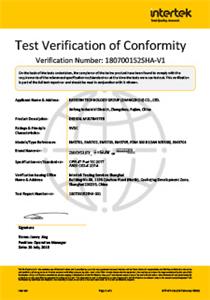

ETL- FCC
GS

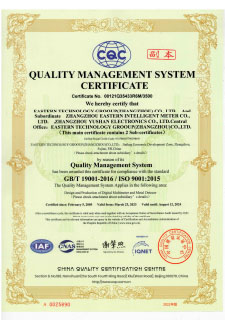

ISO9001

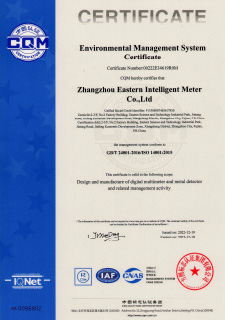

ISO14001
PAHs

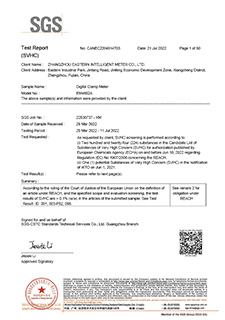

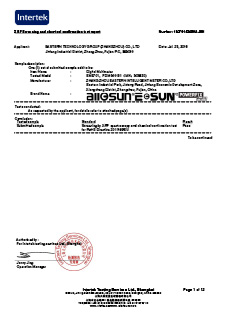

SGS report

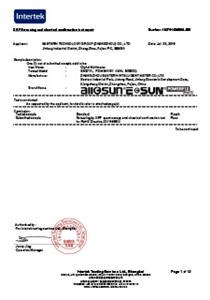

RoHS
SA

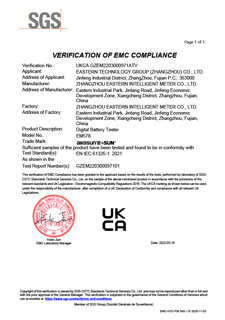

UKCA
OEM / ODM Customization Service
As a company with over 30 years of experience in OEM/ODM manufacturing, we have been providing structured customization services to international brands, distributors, and equipment suppliers. Our engineering and production teams together can take support the whole process from concept development to mass production, thereby ensuring stable quality and project execution at a high level of efficiency.
1. Requirement Analysis
The customer-side provides product specifications, target applications, branding requirements, and packaging preferences. Our engineering team reviews the feasibility of the product and provides customers with optimized technical solutions within 24-48 hours.
2. Engineering Design & Technical Evaluation
Over 50 experienced R&D engineers have thoroughly examined the project and proposed a series of tailor-made solutions such as structural optimization, frequency configuration, and branding integration if necessary.
3. Prototype & Sample Development
Prototypes are usually ready in 7-15 working days depending on the level of customization. Functional testing has been conducted on samples to verify if performance complies with project specifications.
4. Mass Production Implementation
Our 67,000㎡ automated production base is capable of supporting efficient manufacturing processes with a monthly capacity of approximately 10,000 units, thereby ensuring a reliable supply for long-term OEM partners.
5. Quality Inspection & Compliance Verification
All products are manufactured according to ISO9001 quality management standards and subjected to multiple inspections stages before being shipped. The products have been certified to meet the requirements of international standards such as CE, UL, ETL, and RoHS if applicable.
6. Global Delivery & Technical Support
The standard delivery time for bulk orders is 45-60 days, but for urgent projects, flexible scheduling is available. Besides, our technical team assists with installation, provides training, and is always ready to give long-term after-sales support.
About Product Video
Our Exhibition Activities
On April 15, 2025, the 137th China Import and Export Fair (Canton Fair) kicked off in Guangzhou. Eastern Technology Group, a security equipment enterprise, participated actively, presenting its advanced metal detectors.
Eastern Technology Group successfully participated in the prestigious China International Hardware Fair 2024, held on October 21st, where it showcased its latest innovations in metal detection technology.
FAQ
What payment methods do you accept?
We accept Visa, Mastercard, PayPal, bank transfer, Apple Pay, Google Pay, and more.
What is your minimum order quantity?
MOQ varies by product. Normally is 500 PCS. Please contact us for details.
What packaging options are available?
Standard paper box, kraft box, or color box packaging available.
What shipping methods do you offer?
Sea, air, and land shipping available.
What is your production capacity?
10k units per month.Sufficient capacity with flexible production lines for timely delivery.
How long does delivery usually take?
Standard delivery time is 45-60 days after order confirmation.
Do you provide product samples?
Yes, samples are available. We look forward to long-term cooperation.
Can we print our logo on products?
Yes, we can print your logo on products.
