Waterproof Hand Held Metal Detector for Adults and Kids
- all-sun
- China
- 45-60 Days（Negotiable）
- 10k units per month
- TS151
• Two detection modes-DlSC mode and Pinpoint mode
• DlSC mode -discriminates between target categories and ignores unwanted targets.
• Customized discrimination setting- best meets your detection needs.
• Target lD icons - work with a selection cursor to help identify the probable target category.
• Three audio tone pitches - correspond to different target categories.
• Pinpoint mode -locates targets more precisely.
• Target depth indication-shows the approximate depth of buried targets.
• Auto ground balance
• Sensitivity control-adjusts the detection sensitivity.
• Volume control -adjusts the output volume.
• 3.5mm headphones jack-allows connection of headphones.
• Battery level indication- shows the battery level.
• Control panel-features easy-to-press buttons.
• Backlight-allows detection in low-light conditions.
• Large and clear LCD display.
• Waterproof search coil.
Product Introduct
Metal detectors have become indispensable tools across a wide range of fields. Metal detectors offer powerful support. They are not just simple devices but high-tech assistants that help us explore the unknown, discover treasures, and ensure safety.
Waterproof Metal Detector Finder, all assembly hardware included, clear and brief instruction makes the Waterproof Metal Detector Finder much easier to put together. No professional tools needed. The Waterproof Metal Detector Finder can save much time for you.
Product Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | TS151 |
| Main Function | Detects metal objects using electromagnetic induction in yards, parks, beaches, lawns, and construction areas |
| Detection Modes | All-Metal Mode / Recognition (Discrimination) Mode |
| Operating Frequency | 5.8 kHz |
| Detection Depth | Up to 6 in (15 cm, test coin: 25¢) |
| Sensitivity | ≤15 cm (test coin: 25¢) |
| Search Coil Shape | Round |
| Search Coil Size | 160 mm ±10 mm |
| Search Coil IP Rating | IP68 (probe only) |
| Power Supply | 9V Battery (6F22 ×1) / 1.5V AA Battery ×4 (alternate option) |
| Power Supply Voltage | 7.6 – 9.6 V |
| Rated Current | ≤300 mA (when speaker sounds) |
| Quiescent Current | ≤30 mA |
| Working Hours | Approx. 8 hours |
| Audio Output | Speaker |
| Volume Level | ≥75 dB (10 cm distance) |
| Audio Frequency | 800 – 1000 Hz |
| Handle Length | 650 – 950 mm (adjustable) |
| Display | TN LCD Screen (35 × 55 mm) |
| Processing Chip | Embedded Microcontroller |
| Probe Rod Material | PVC Engineering Plastic |
| Search Coil Material | ABS Engineering Plastic |
| Product Material | ABS |
| Anti-Interference Distance | ≥1 m between detectors |
| Low Battery Alert | LCD Symbol Indication / Battery Icon Empty |
| Operating Environment | 0°C to 40°C; Relative Humidity <80% |
| Storage Environment | -10°C to 50°C; Relative Humidity <80% |
| Weight | About 1.36 kg (with batteries) |

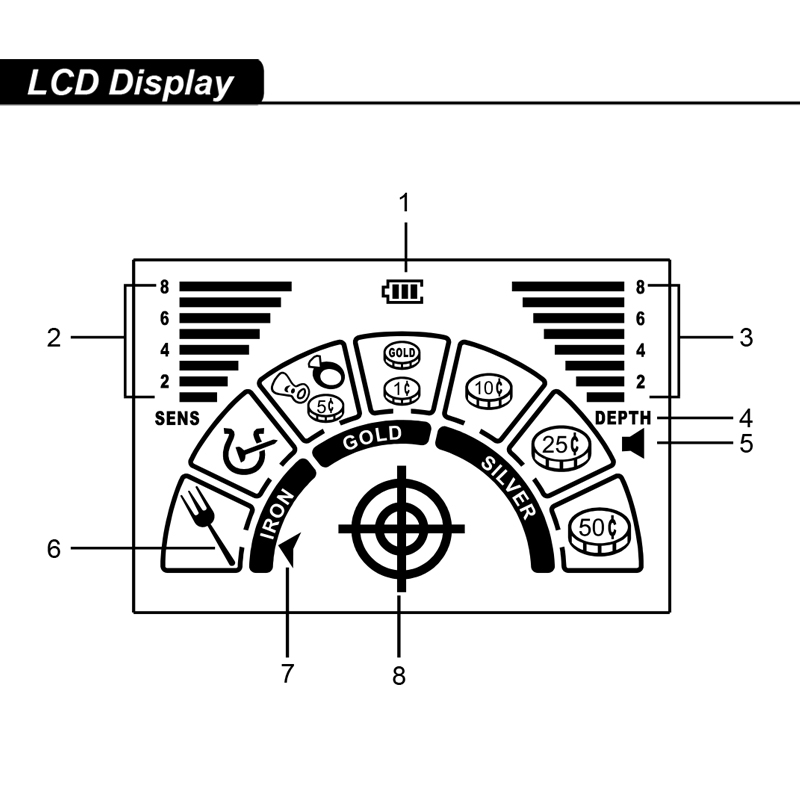

The Introduction LCD Display Detail Of Metal Detector
1. Battery level icon
Shows the present battery level.
2.Sensitivity indicator bars
Shows the current detection sensitivity setting. Eight levels available for sensitivity adjustment.
3. Depth / Volume indicator bars
Shows the approximate depth of buried targets or the tone volume setting. Eight levels available for depth display or volume adjustment.
4. Depth icon
Appears when the indicator bars on the right are displaying the target depth.
5. Volume icon
Appears when the indicator bars on the right are displaying the tone volume level.
6. Target ID icons
Represents different target categories. If a target ID icon frame is not visible, the category is rejected by the detector.
7. Selection cursor
Indicates the target ID icon to be modified or the category of the detected target.
8. Pinpoint icon
Appears when Pinpoint mode is activated.
KEY ADVANTAGE
High-Precision Detection
With the dual detection modes and 5.8 kHz frequency that come standard, this device very accurately locates metals down to 15 cm underground, making it perfect for finding coins, treasures, and other small items.
User-Friendly Design
The adjustable handle (650-950 mm), lightweight 1.36 kg body, and sharp TN LCD display will let the kids comfortably use the device in different environments, such as parks, beaches, lawns, etc.
Durable & Reliable
IP68 coil, strong ABS/PVC materials, long 8-hour battery, and high anti-interference abilities are some of the features that make it possible to expect great performance under any conditions can be expected from this product.
OEM / ODM Customization Service
As a company with over 30 years of experience in OEM/ODM manufacturing, we have been providing structured customization services to international brands, distributors, and equipment suppliers. Our engineering and production teams together can take support the whole process from concept development to mass production, thereby ensuring stable quality and project execution at a high level of efficiency.
1. Requirement Analysis
The customer-side provides product specifications, target applications, branding requirements, and packaging preferences. Our engineering team reviews the feasibility of the product and provides customers with optimized technical solutions within 24-48 hours.
2. Engineering Design & Technical Evaluation
Over 50 experienced R&D engineers have thoroughly examined the project and proposed a series of tailor-made solutions such as structural optimization, frequency configuration, and branding integration if necessary.
3. Prototype & Sample Development
Prototypes are usually ready in 7-15 working days depending on the level of customization. Functional testing has been conducted on samples to verify if performance complies with project specifications.
4. Mass Production Implementation
Our 67,000㎡ automated production base is capable of supporting efficient manufacturing processes with a monthly capacity of approximately 10,000 units, thereby ensuring a reliable supply for long-term OEM partners.
5. Quality Inspection & Compliance Verification
All products are manufactured according to ISO9001 quality management standards and subjected to multiple inspections stages before being shipped. The products have been certified to meet the requirements of international standards such as CE, UL, ETL, and RoHS if applicable.
6. Global Delivery & Technical Support
The standard delivery time for bulk orders is 45-60 days, but for urgent projects, flexible scheduling is available. Besides, our technical team assists with installation, provides training, and is always ready to give long-term after-sales support.
Why Choose Us
1. 30+ Years OEM & ODM Experience
We have been offering dependable OEM/ODM manufacturing services for worldwide brands since 1993. This is made possible through our profound production experience combined with quality control systems that satisfy the requirements of international markets.
2. Strong R&D & Innovation
The product innovation never stops thanks to 50+ engineers and 200+ patents. Provincial R&D and design centers provide advanced, customizable solutions to address complex industry requirements.
3. Production Capacity & Lead Time
67,000㎡ automated factory is capable of 10,000 units/month production with the typical lead time of 45–60 days; negotiable for bulk or urgent orders. It is a guarantee of stable supply, consistent quality, and timely delivery for large-scale OEM projects.
4. International Certifications
CE, UL, ETL, GS, RoHS, and REACH are some of the certifications together with TÜV, SGS, and BSCI audits that confirm compliance in the US, EU, and other regulated markets.
5. Global Presence & Trusted Partner
We are servicing over 70 countries in the fields of electronics, telecom, automotive, and environmental monitoring and are recognized as the stable and reliable OEM/ODM partner of choice for international brands.
6. Comprehensive After-Sales Support
With help on installation, training, technical consultation, and fast-response service, partners find it easy to maintain continuous operations and make the most of their investment throughout the product lifecycle.
Our Certifications
BSCI
ETL- FCC
GS
ISO9001
ISO14001
PAHs
SGS report
RoHS
SA
UKCA
Cautions
To avoid damage to the detector, adhere to the following guidelines:
Only use and store in normal temperature environments. Extremes in temperature can shorten the life and the effectiveness of electronic devices.
Keep the detector away from any devices causing electromagnetic interference.
The control box is not waterproof. Protect the control box from water, and do NOT use in rain.
Do NOT use the detector indoors or in a narrow space.
Do NOT lean on the detector when in use as it is not designed to support your weight.
Do NOT tamper with the internal circuit of the detector.
Handle the detector carefully. Do NOT bump, drop or abuse the detector.
The detector is designed to hunt for underground metal objects. Do NOT use this tool for a purpose for which it is not intended.
