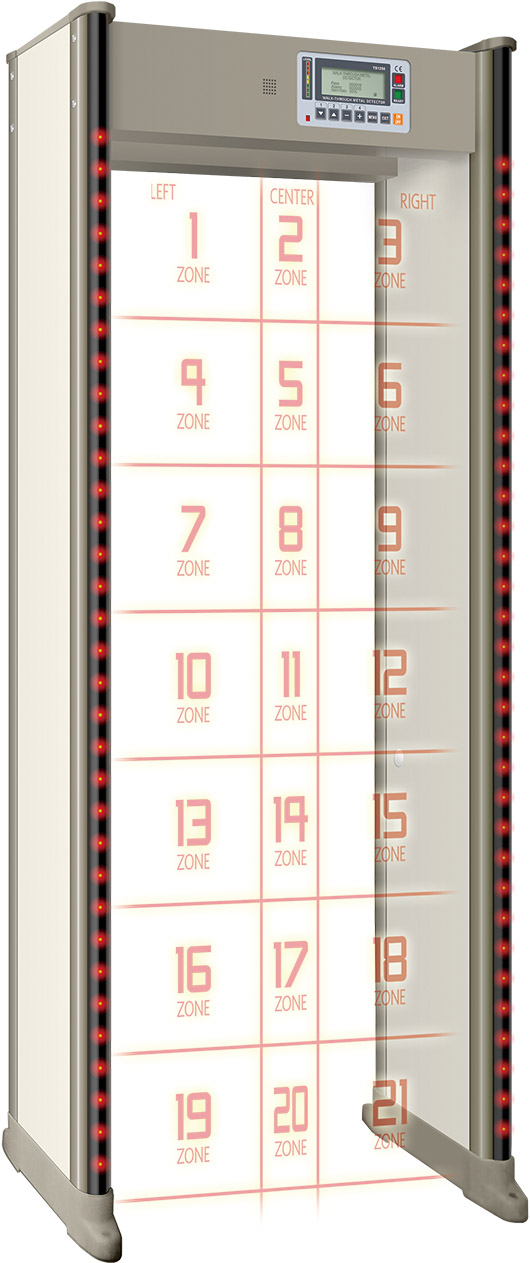

Walk Through Arch Metal Detector Security Door Frame
- all-sun
- china
- 60 days
- 10k units per month
- TS1252
This 21-zone infrared security detection system is capable of providing reliable high-performance screening with a detection accuracy of greater than or equal to 95%, and it has a low false alarm rate of less than or equal to 5% in controlled environments. It permits rapid real-time reaction in 0.3-0.5 seconds and is able to handle a passenger flow of up to 60 people per minute in an efficient way. Designed for harsh security environments, it can consistently function between -20°C and +55°C and provides IP54 level of protection. Besides, the IP65 upgrade is also available as an option that will secure reliable 24/7 operation of airports and critical facilities.
Product Introduction
This infrared detection zone system with 21 zones operates on a 100 to 240 V AC, 50/60Hz power supply, with a power consumption of only 20W. It has a multi-zone layout of 7x3, adjustable sensitivity of 0-255 in 4 independent areas. It can support sound + LED alarms with volume 0 - 16 and tone 0 - 15 adjustment. Crafted with an industrial structure of 2220 x 880 x 730 mm and approx. 73 kg, it is equipped with password protection and touch-key control for secure and accurate operation in commercial security applications.
Technical Specifications
Electrical Specifications
| Item | Parameter |
|---|---|
| Input Power Supply | AC 100–240V, 50/60Hz |
| Power Consumption | ≤ 20W |
| Power Stability | Stable industrial-grade power design |
Detection System Specifications
| Item | Parameter |
|---|---|
| Detection Zones | 21 zones (7 vertical × 3 horizontal detection grid) |
| Sensitivity Range | 0–255 adjustable sensitivity |
| Sensitivity Control | 4 independent adjustable detection areas |
| Infrared Counting | Enabled / Disabled optional function |
| Detection Technology | Multi-zone infrared detection system |
Control & Operation Specifications
| Item | Parameter |
|---|---|
| Alarm Type | Sound + LED visual alarm |
| Alarm Volume | 0–16 adjustable levels |
| Alarm Tone | 0–15 selectable tones |
| Alarm Response Time | Instant trigger response (real-time alert system) |
| Smart Alarm Features | Adjustable audio mode & multi-level alert control |
Physical Specifications
| Item | Parameter |
|---|---|
| Overall Dimensions | 2220 × 880 × 730 mm |
| Net Weight | Approx. 73 kg |
| Structure Design | Industrial-grade reinforced structure |
| Installation Type | Floor-standing design |
Optional Features
| Item | Parameter |
|---|---|
| Infrared Counting System | Optional ON/OFF function |
| Multi-zone Sensitivity Mode | Optional configuration |
| Custom Alarm Settings | Supported (OEM customization available) |
Product Application
A 21-zone infrared detection system for security screening and access control is ideal for airports where there is a need for high-throughput passenger inspection and in courthouses where controlled entry monitoring is required. Besides, this system has been extensively implemented in industrial facilities, data centers, and logistics warehouses to enhance perimeter security. Additionally, it is found in schools, exhibition venues, and government buildings that require dependable multi-zone intrusion detection and instant alarm response.
Product Advantages
1. High-Precision 21-Zone Detection Equipped with a 21-zone (7×3 grid) infrared detection system, the door frame accurately pinpoints metal object locations, improving screening efficiency by up to 40% compared to single-zone systems.
2. Adjustable Sensitivity Control 0–255 sensitivity range with 4 independent adjustable areas allows precise tuning for airports, schools, and public venues, reducing false alarms in high-traffic environments.
3. Low Power & Stable OperationWith ≤20W power consumption and AC 100–240V input, the system ensures energy-efficient 24/7 operation suitable for continuous security checkpoints.
4. Fast Response Alarm System Instant sound + LED alert with 0–16 volume and 0–15 tone settings enables rapid threat response while maintaining smooth passenger flow in busy security areas.
